Description

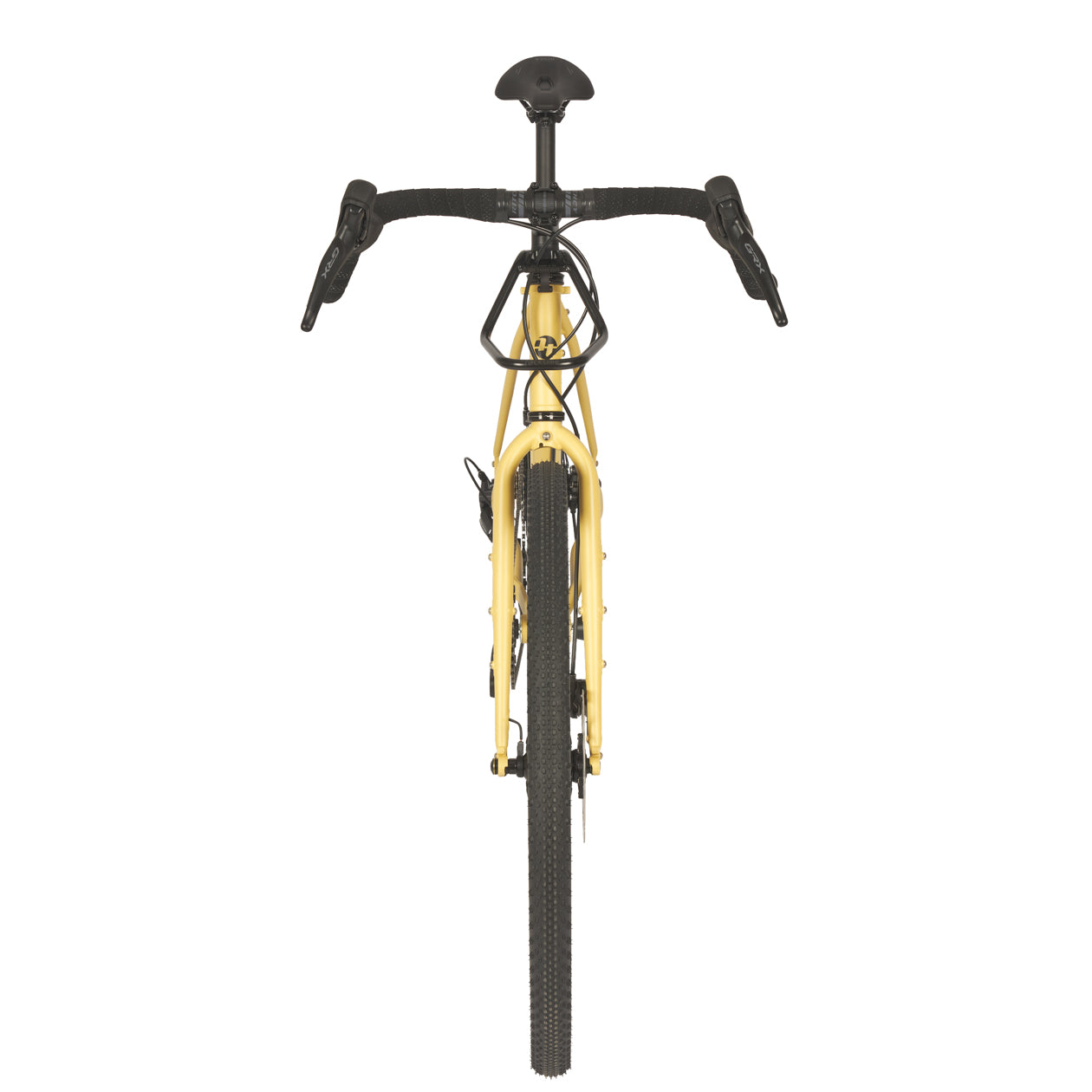

28er mountainbike Vasco 28 Select 6.3 SmallThe Tout Terrain Vasco 28 Select 6. 3 is a versatile and durable steel frame gravel bike built to handle everything from long gravel rides to multi week bikepacking trips. This latest Select model achieves the perfect balance between agility and durability, making it easier than ever to seek out adventure. Key Features for Adventure Touring: Drivetrain: Equipped with a reliable Shimano GRX 1x12 drivetrain, featuring a wide range 11 51T Sunrace
The Tout Terrain Vasco 28 Select 6.3 is a versatile and durable steel frame gravel bike built to handle everything from long gravel rides to multi-week bikepacking trips. This latest Select model achieves the perfect balance between agility and durability, making it easier than ever to seek out adventure.
Key Features for Adventure Touring:
Drivetrain: Equipped with a reliable Shimano GRX 1x12 drivetrain, featuring a wide-range 11-51T Sunrace cassette for steep climbs and high speeds.
Frame & Fork: Built with a rugged Vasco steel frame (Tout Terrain Stratocrom tubing) and paired with a durable Tout Terrain Expedition steel fork for comfort and resilience.
Integrated Power: Ready for long-distance touring with a Shutter Precision PL-7 hub dynamo and the Cinq Plug Pure 7 power supply for charging electronics on the go.
Tire Clearance: Rolls on fast 28" wheels with Continental Terra Trail 700Cx45mm tires on DT Swiss G540 rims, offering reliable grip on mixed terrain.
Mounting Points: Ample capacity for gear with 4 bottle cage mounts on the frame and 2 on the fork, plus mounting points for mudguards and a Racktime Viewit rear rack.
The Vasco 28 Select 6.3 is available in sizes S, M, L, XL, with a maximum total weight capacity of 130 kg.
Bottle cage mounts: 4 (frame) + 2 (fork)
Bottom Bracket: FSA BB-7420ST | Square taper | BSA 68mm
Brake: Shimano GRX | BR-RX400 | Gravel disc brake
Brake mount type: Front: Flat Mount 160-180mm | Rear: Flat Mount 160-180mm
Cassette: Sunrace CSMZ603 | 11-51T | 12s
Chain / belt: Shimano CN-M6100 | 12s
Crankset: FSA Vero Pro | 40T | 172,5mm
Drivetrain: Shimano GRX 1x12
Fork: Tout Terrain Expedition Fork II | steel fork
Frame: Vasco steel frame | Tout Terrain Stratocrom tubing
Frame color: Tuareg matte
Frame size: L, M, S, XL
Front derailleur: n/a
Front hub: Shutter PL-7 hub dynamo | Centerlock rotor interface
Gear lever: Shimano GRX | ST-RX610
Grips: Fizik Microtex Performance grip tape
Handlebar: Tout Terrain Gravel drop-bar | 440mm | 16° flare
Headset: Acros | EC34 / EC34
Hub spacing: Front: 12/100mm thru-axle | Rear: 12/142mm thru-axle
Maximum total weight: 130 kg (frame)
Model: Vasco
Mudguard: mounting points available
Pedals: n/a
Power supply: Cinq Plug Pure 7
Rack: Racktime Viewit
Rear derailleur: Shimano GRX | RD-RX822 | 1x12
Rear hub: Tout Terrain EX-R1 - 10/11/12S | Centerlock rotor interface
Rims: DT Swiss G540
Rotor size (front/rear): 180mm/160mm
Saddle: WTB Volt Medium
Seat post: Tout Terrain | 27,2mm
Steering stop: Tout Terrain Ergo-Stop II
Stem: Tout Terrain | 100mm | +/- 6°
Tires: Continental Terra Trail (black) | 700Cx45mm / 45-622
Wheel size: 28"
| S | M | L | |||
| A | SEAT TUBE LENGTH (mm) | 490 | 530 | 570 | 610 |
| A1 | SEAT TUBE LENGTH (mm) | 431 | 471 | 512 | 552 |
| B | TOP TUBE LENGTH (mm) | 535 | 555 | 575 | 595 |
| C | HEAD TUBE LENTH (mm) | 125 | 150 | 175 | 200 |
| D | CHAINSTAY LENGTH (mm) | 435 | 435 | 440 | 440 |
| E | WHEELBASE (mm) | 1010 | 1030 | 1045 | 1060 |
| F | BOTTOM BRACKET DROP (mm) | 70 | 70 | 70 | 70 |
| G | HEAD TUBE ANGLE (*) | 71 | 71 | 71.5 | 71.5 |
| H | SEAT TUBE ANGLE (*) | 73 | 73 | 72.5 | 72 |
| I | STACK (mm) | 562 | 585 | 611 | 635 |
| J | REACH (mm) | 363 | 376 | 382 | 389 |
| K | STAND OVER CLEARANCE (mm) | 766 | 797 | 829 | 859 |
